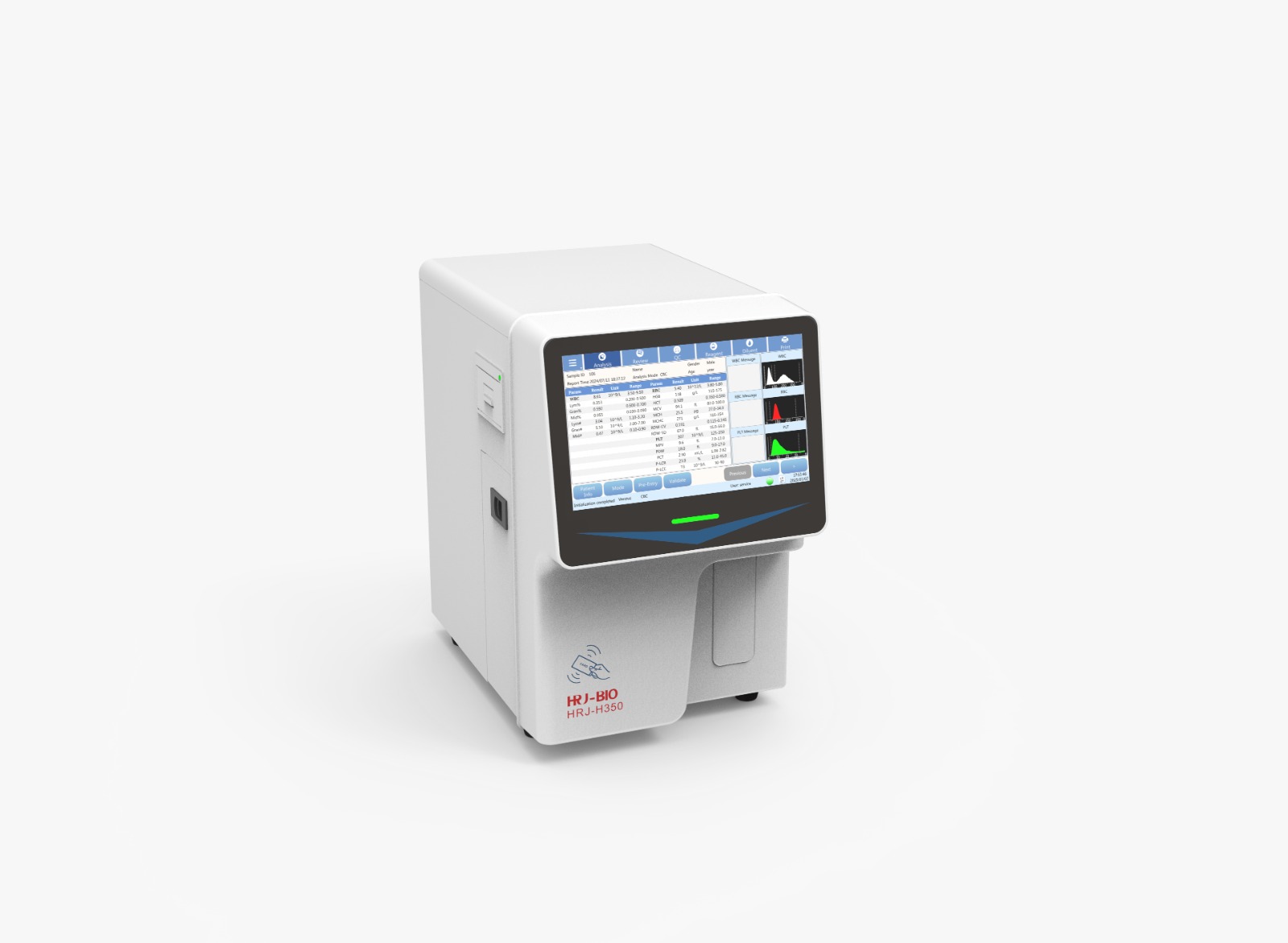

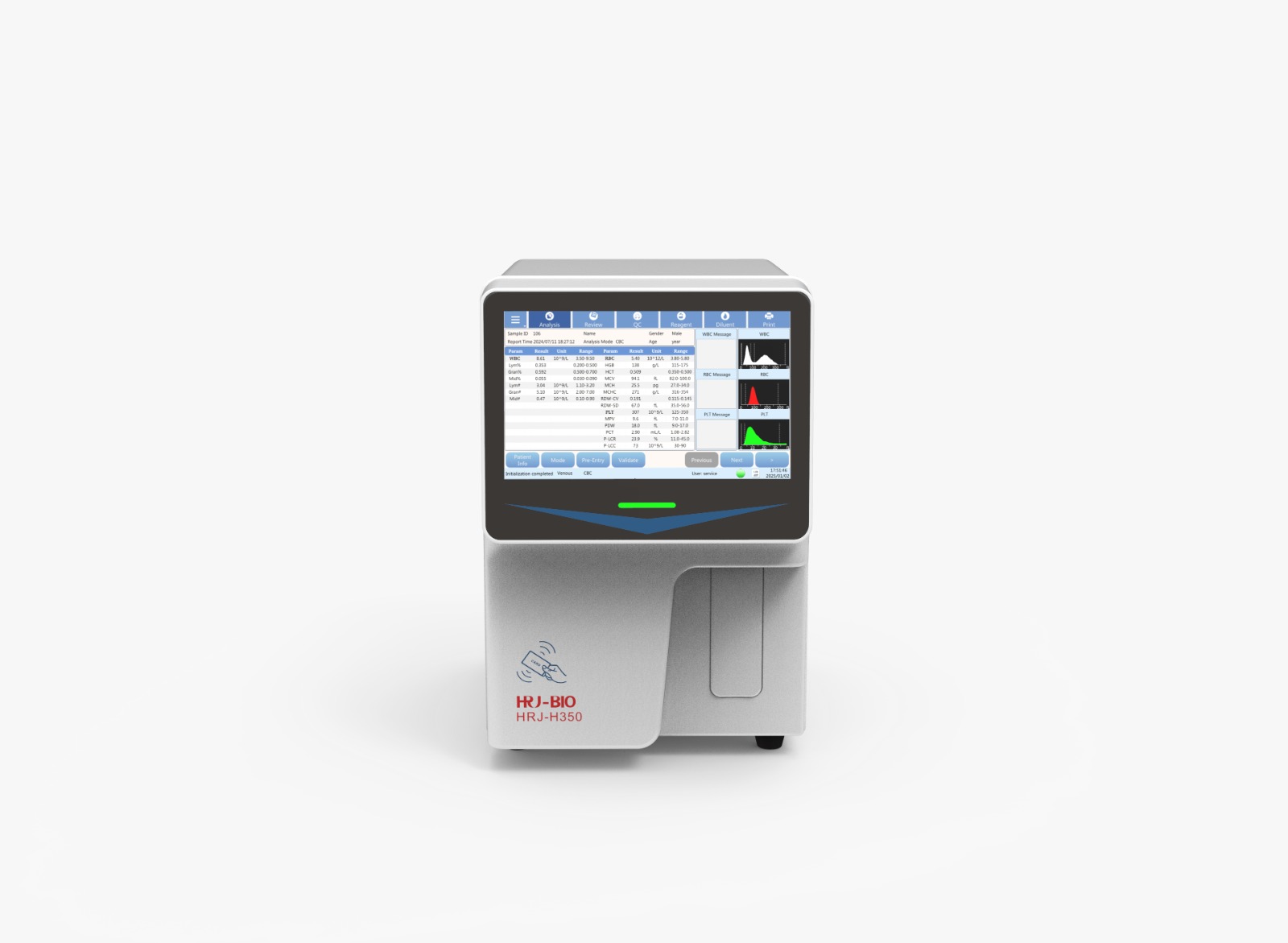

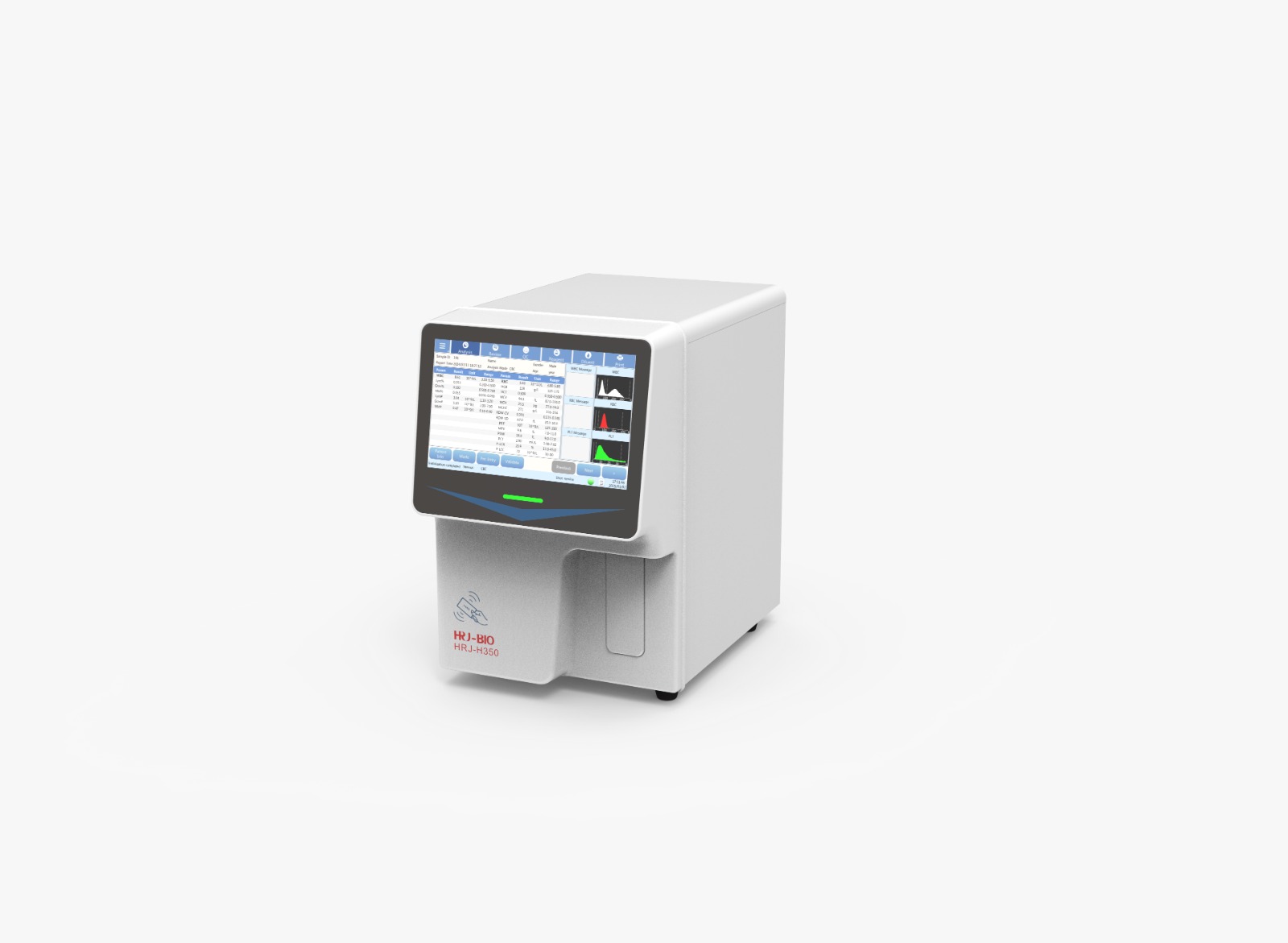

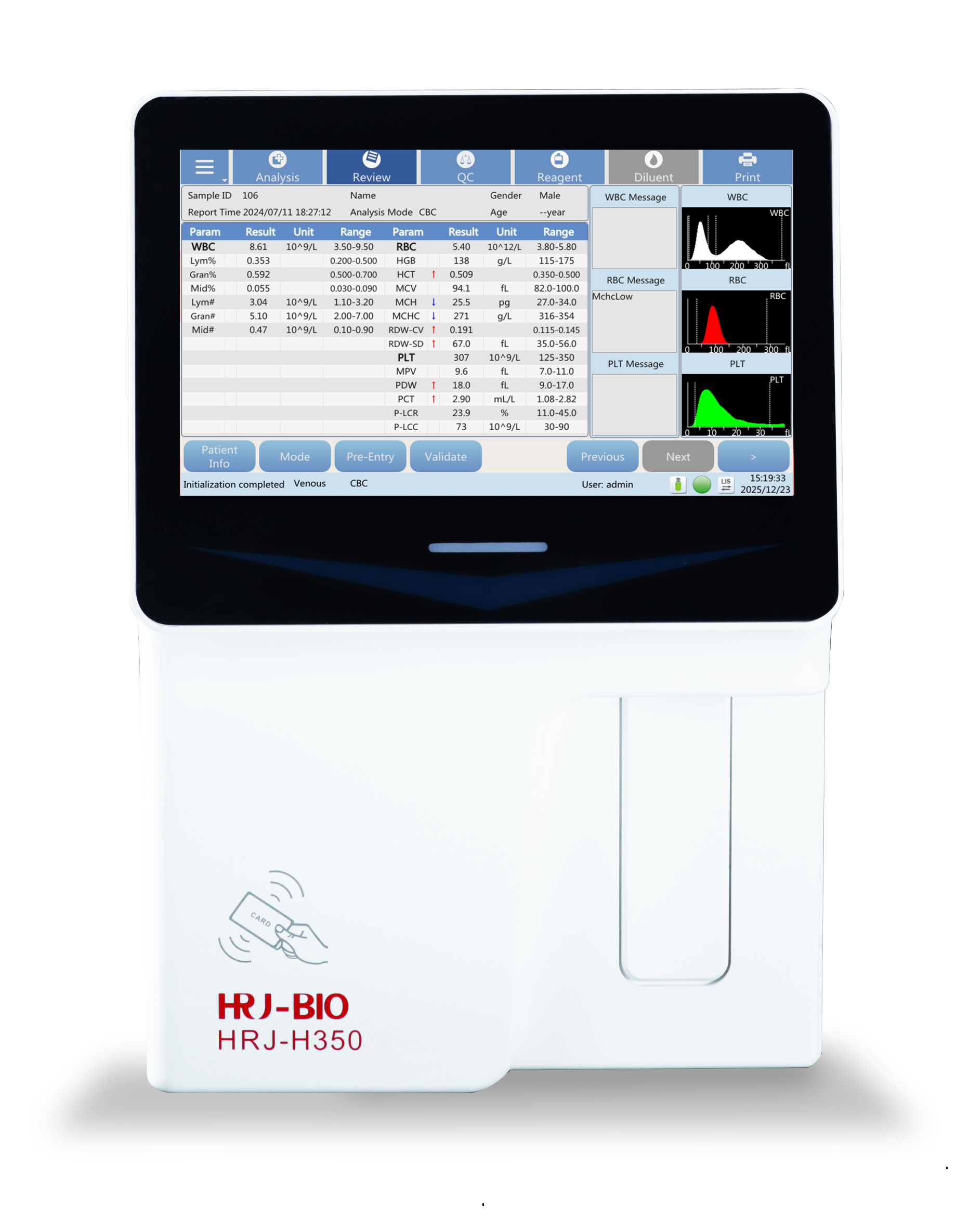

HRJ-H350 3-Part Hematology analyzer

Working Principle

HRJ-H350 adopts impedance method for WBC, RBC and PLT tests, Cyanide free colorimetry for HGB test.

21 parameters	Reagents	Histograms
WBC, NEU#, LYM#, MID#, NEU%, LYM%, MID%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT PLT, MPV, PDW-SD, PCT, P-LCR, P-LCC	2 RFID Locked reagents are used for analysis: Diluent 20L, Lyse 500mL	3 histograms (RBC, WBC, PLT)
Linearity ranges	Throughput	Sample volume
PLT: 0~5000 × 10⁹/L RBC: 0.00~8.00 × 10¹²/L WBC: 0.00~200.0 × 10⁹/L HCT: 0~67% HGB: 0.0~250.0 g/dL	60 samples/hour	Whole Blood mode: 9 µL Capillary mode: 9 µL Prediluted mode: 20 µL
Smart maintenance	Sample aspiration	Data storage capacity
– One-click error removal – Hardware self-checking	Open tube	200,000 samples with histograms and patient information
Interface ports	Export of parameter results	Display
– 4 USB ports, 1 LAN – Supports Bi-directional LIS communication	Printout: – Internal printer – Supports external printer – Support custom templates	10.1-inch touch screen
Weight	Dimension	Controls
17 kg	274 mm (W) x 416 mm (D) x 410 mm (H)	3-level QC (L, M, H) QC statistics: L-J graph, X-Bar
