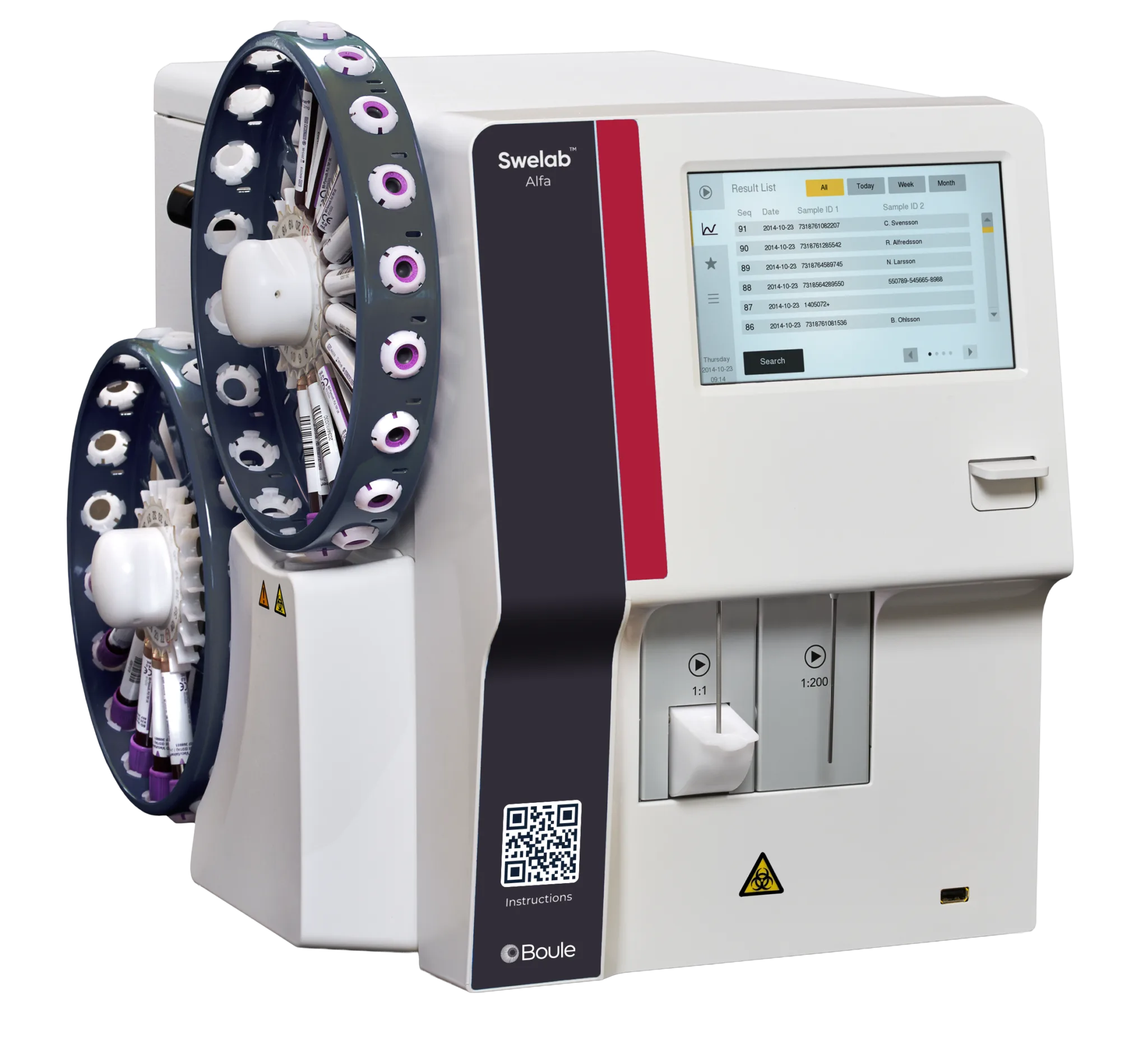

Swelab Alfa Plus Sampler
Designed for robustness and ease-of-use makes Swelab Alfa Plus Sampler hematology system suitable also for challenging conditions.
It supports direct capillary (finger-stick) sampling via MPA (Micro-Pipette Adapter) for fast, full CBC results in ~1 minute from just 20 µL of whole blood.
-
Convenient automation: Takes care of pre-analytical mixing
-
Measurement quality: Shear valve-guided aspiration enables absolute volumetric count
-
Compact design: Saves space when bench space is limited
Specifications
16 Clinical Parameters:
WBC, RBC, HGB, MCV, PLT, MPV, HCT, MCH, MCHC, RDWr, LYM#, LYM%, MID#, MID%, GRA#, GRA%
6 Research Parameters:
PCT, PDWa, P-LCR, RDWa, PDWr, P-LCC
Display:
7” TFT touchscreen
Weight:
18 kg (Basic/M32B, Standard/M32M, Cap/M32C)
22 kg (Sampler/M32S)
Dimensions:
295 × 475 × 395 mm (Basic/M32B, Standard/M32M, Cap/M32C)
340 × 475 × 395 mm (Sampler/M32S)
Controls:
Tri-level controls (L, M, H)
Throughput:
Up to 60 samples/hour
50 seconds time to results, OT inlet
Sample Volume:
Open tube (OT): 110 µL
Capillary (MPA): 20 µL
Prediluted: 20 µL
Cap piercer (CT): 250 µL
Autoloader: 300 µL
Sample Aspiration:
Open tube
Closed tube
Micro-pipette adapter
Autosampler (20 × 20 samples)
Linearity
PLT: 10–1800 ×109/L
RBC: 0.30–7.00 ×1012/L
WBC: 0.20–130.0 ×109/L
HGB: 2.0–24.0 g/dL
QC Statistics:
≤ Mean
SD
CV%
Levey-Jennings
X-bar
Data Storage Capacity:
Up to 50,000 samples
Interface Ports:
1 USB device/4 USB host, 1 LAN.
port that supports LIS/HIS
Communication through HL7 protocol
Export Options:
Postscript-compatible printers supporting PCL 3/5e
Software-supported thermal printers
External USB disk
Laboratory information system (LIS)
